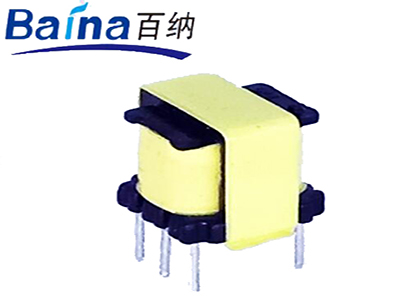

product name:EE10

Product introduction:

support hotline: 13928159753
Detailed introduction

I. EE10 high frequency Transformer size exterior map(in mm)


Trade name

Type

Skeleton Style

L

W

H

1 side PIN(PIN distance)

2 side PIN(PIN distance)

Rounding

PIN Trail

EE10-1

vertical

12.0

12.5

13.0

4

2.5

4

2.5

8.0

Φ0.5

EE10-2

horizontal type

12.0

13.0

11.5

4

2.5

4

2.5

10.5

Φ0.5

The above is the company's commonly used skeleton style, other styles are not included in the list, welcome to consult. The company can customize EE10 high frequency Transformers of various specifications according to customer requirements.
II. EE10 High frequency Transformer performance
1. Operating frequency: 20 kHz-300 KHz
2. Output power: 0.5 to 5 W
3. Operating temperature: -40 °C to +125 °C
4. Storage temperature: -25 °C to +85 °C
5. Storage humidity: 30 to 95 %
3. Features of EE10 HF Transformers
EE10 high-frequency Transformer has the characteristics of small size, cheap, high reliability. The EE Transformer is a basic ferrite core with stable performance, low cost and large current. It is widely used in power conversion and circuit filtering. Volume from small to large, to meet the needs of various application circuits. If you use a temperature-resistant 130 or 180-degree polyazepam paint envelope, it can meet different temperature conditions and is suitable for various switching power supplies and inverters, UPS, etc..
IV. Application of EE10 High Frequency Transformer
EE-10 high-frequency Transformers are commonly used in DC-DC converters, drive Transformers, digital cameras, and switch power common mode inductors.
V. EE10 High Frequency Transformer Price
The price range of EE10 high-frequency Transformers is generally between 0.85-1 .2 yuan(RMB). The price mainly depends on the complexity of the product, the customer's requirements for raw materials, and whether or not it requires safety certification.
