product name:EE16

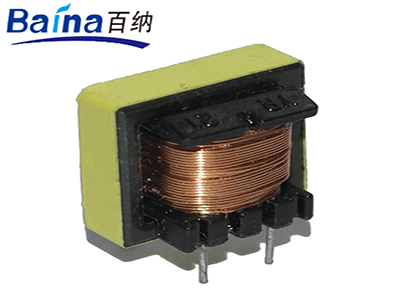

Product introduction: EE16 high-frequency Transformer has the characteristics of small size, cheap, high reliability. The EE Transformer is a basic ferrite core with stable performance, low cost and large current. It is widely used in power conversion and circuit filtering. Volume from small to large, to meet the needs of various application circuits.

support hotline: 13928159753
Detailed introduction

1. EE16 High Frequency Transformer Size Appearance Diagram (mm)




Product Name

Type distinction

Skeleton style

L

W

H

1 side PIN (PIN distance)

2 side PIN (PIN distance)

Row spacing

PIN path

EE16-1

vertical

18.0

16.5

17.5

4

3.5

6

2.7

12.3

Φ0.6

EE16-2

vertical

16.5

14.0

15.5

5

3.3

5

3.3

10.5

Φ0.6

EE16-3

vertical

15.5

15.5

14.0

4

3.8

4

3.8

10.2

Φ0.6

EE16-4

horizontal

17.0

21.0

14.5

4

3.8

4

3.8

15.7

Φ0.6

EE16-5

horizontal

17.0

19.0

13.5

5

3.2

5

3.2

15.5

Φ0.6

EE16-6

horizontal

17.0

19.0

14.0

5

2.5

5

2.5

12.5

Φ0.6

EE16-7

vertical

17.0

18.0

16.5

5

3.2

2

12.8

13.8

Φ0.6

EE16-8

vertical

17.0

17.0

15.0

5

3.5

4

5.0/3.2

14.2

Φ0.6


The above are the common skeleton styles of the company, other styles are not included in it for the time being. Welcome to consult. The company can customize EE16 high frequency transformers of various specifications according to customer requirements.



II. EE16 High Frequency Transformer Performance



1. Working frequency: 20kHz-500KHz



2. Output power: 0.5 to 15 W



3. Working temperature: - 40 ~125 ~



4. Storage temperature: - 25 ~85 ~



5. Storage humidity: 30 to 95%



Characteristics of EE16 High Frequency Transformer



EE16 high frequency transformer has the characteristics of small size, low price and high reliability. EE transformer is a basic ferrite core with stable performance, low cost and high current. Widely used in power conversion and line filtering. Volume from small to large, to meet the needs of various application circuits. For example, polyurethane enameled wires with temperature resistance of 155 ~180 ~C can meet different temperature conditions. They are suitable for various switching power supply, inverters, UPS, etc.



IV. Application of EE16 High Frequency Transformer



EE16 high frequency transformer is often used in auxiliary power transformer, DC-DC converter, drive transformer, digital camera, handheld switching power charger, etc.



V. EE16 High Frequency Transformer Price



The price range of EE16 high frequency transformer is generally between 1.3 and 2.2 yuan(RMB). The price mainly depends on the process complexity of the product, the requirements of customers for raw materials, and whether safety certification has been required.
