product name:ER-28

Product introduction:

support hotline: 13928159753
Detailed introduction

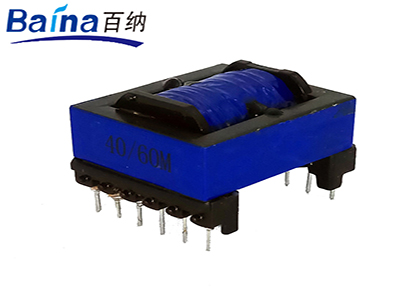

I. ER28 high frequency Transformer size exterior map(in mm)


Trade name

Type

Skeleton Style

L

W

H

1 side PIN(PIN distance)

2 side PIN(PIN distance)

Rounding

PIN Trail

ER28-01

vertical

I

29.5

24.0

36.0

5

5.0

5

5.0

17.5

Φ0.8



ER28-02

horizontal type

II

31.5

38.0

26.5

6

5.0

6

5.0

30.0

Φ0.8




The above is the company's commonly used skeleton style, other styles are not included in the list, welcome to consult. The company can customize various specifications ER28 high frequency Transformers according to customer requirements.
II.ER28 High frequency Transformer performance
1. Operating frequency: 20 kHz-500 KHz
2. Output power: 30 to 150 W
3. Operating temperature: -40 °C to +125 °C
4. Storage temperature: -25 °C to +85 °C
5. Storage humidity: 30 to 95 %
III. Characteristics of the. ER28 high frequency Transformer
ER28 High-frequency variable pressure equipment is characterized by convenient winding, moderate price, and high reliability. The ER Transformer is a basic type of ferrite core. They are widely used in switching power supplies and a variety of electronic lines. The oscillation methods include full bridges, half-bridges, single-ended, resonant, Push-Pull lines, etc.. Excellent material properties, For typical Transformer structure, the cylindrical center column of the ER core makes it easier to winding and increases the cross-sectional area of the winding, which can increase the output power and is suitable for various switching power Transformers and damper coils.
IV. Application of the high-frequency Transformer of the. ER28
ER28 high-frequency Transformers are commonly used in main Transformers, LLC resonant inductors, DC-DC converters, and switch power charger.
V. ER28 High frequency Transformer price
The price range of the ER28 high-frequency Transformer is generally between 3.5-4 .8 yuan(RMB). The price mainly depends on the complexity of the product, the customer's requirements for raw materials, and whether it requires safety certification.
