product name:RM-8

Product introduction:

support hotline: 13928159753
Detailed introduction

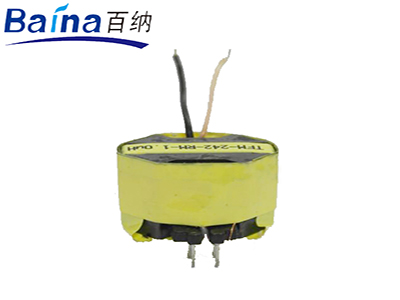

I. RM8 high frequency Transformer size exterior map(in mm)


Trade name

Type

Skeleton Style

L

W

H

1 side PIN(PIN distance)

2 side PIN(PIN distance)

Rounding

PIN Trail

RM8-01

vertical

I

26.0

25.0

18.0

6

3.0

6

3.0

18.0

Φ0.5

RM8-02

vertical

II

27.0

31.0

18.5

6

3.8

6

3.8

20.3

Φ0.6


The above is the company's commonly used skeleton style, other styles are not included in the list, welcome to consult. The company can customize the RM8 high frequency Transformers of various specifications according to customer requirements.
II. Performance of RM8 high frequency Transformers
1. Operating frequency: 20 kHz-500 KHz
2. Output power: 15 to 60 W
3. Operating temperature: -40 °C to +125 °C
4. Storage temperature: -25 °C to +85 °C
5. Storage humidity: 30 to 95 %
III. Characteristics of RM8 high frequency Transformers
The RM8 high frequency Transformer has the characteristics of small size, cheap price and high reliability. The RM8 Transformer is a new type of ferrite core Transformer designed to meet the requirements of modern switching power Transformers. Its magnetic core tightly wraps the wire package into it, making the transformer leakage sensitivity as small as possible, EMI performance is the best, and radiation is minimal. And it can meet the requirements of reducing copper and iron damage of switching power supply Transformers working at high frequency, and can also meet the requirements of switching power supply in terms of temperature rise. The overall volume of the power supply can be reduced as much as possible, which is conducive to miniaturization. Its circular center column makes the winding easier, the capacity of the wire package is increased, and the lead end of the skeleton makes the product installation very reliable. It is suitable for switching power supplies and dampening coils. It is a transformer model with excellent performance. However, the disadvantage is that the cost is slightly higher and the processing process is more complicated than other Transformers.
IV. Application of RM8 high frequency Transformer
RM8 high-frequency Transformers are commonly used in DC-DC converters, drive Transformers, digital products, and XDSL Transformers.
V. RM8 high frequency Transformer price
The price range of RM8 high-frequency Transformers is generally between 4.5-6 .5 yuan(RMB). The price mainly depends on the complexity of the product, the customer's requirements for raw materials, and whether or not it requires safety certification.
